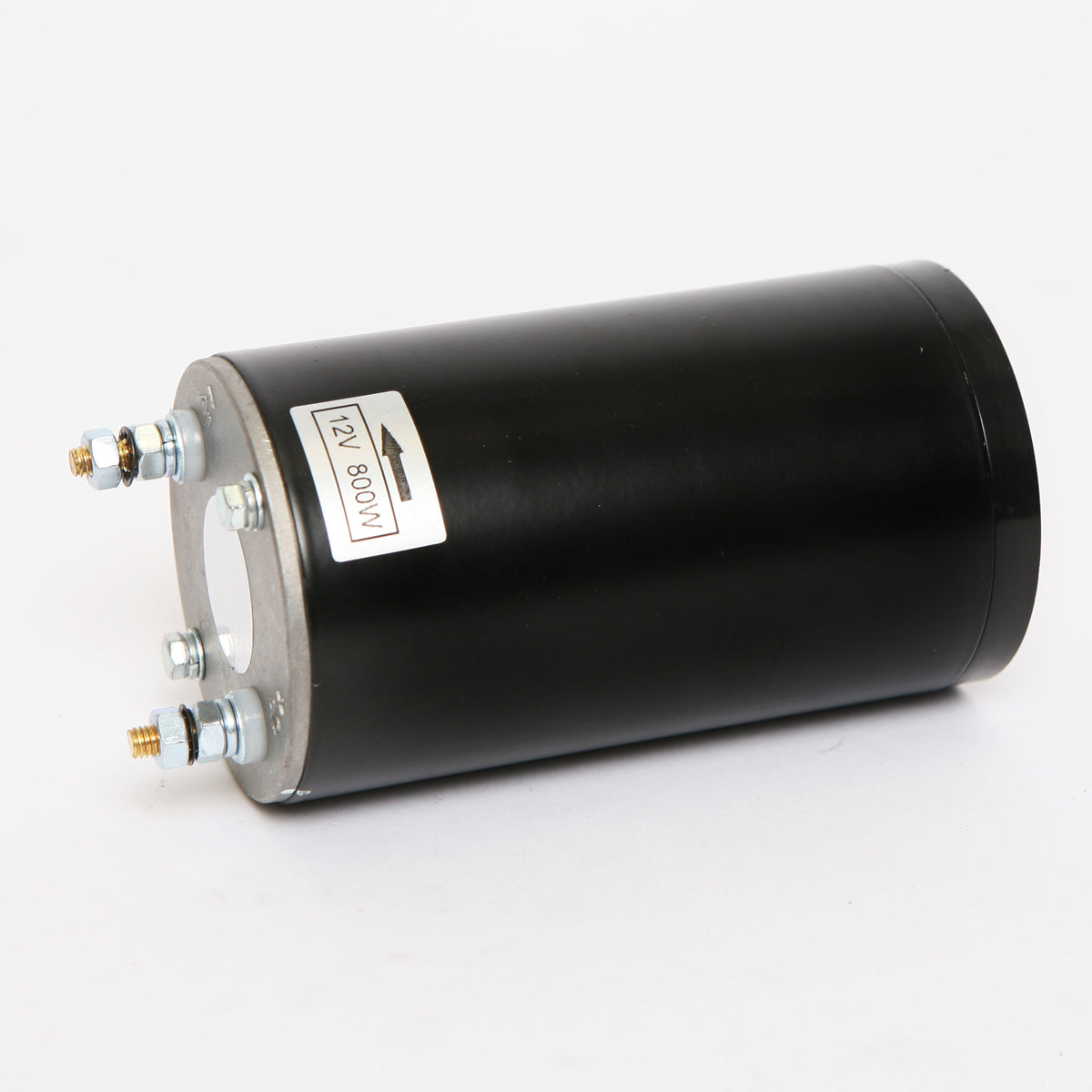

Replacement Motor #3332
$217.16
Replacement pump motor, EQ Systems part 3332
The 12 volt motor for the 3195KS, 3200KS and 3201KS hydraulic pump assemblies. The parts books list it as MOTOR-3195KS-3200KS-3201KS, PM12800A, and it is supplied inside the 3195KS assembly along with reversing contactor 2994, reservoir kit 3329K and fill cap 3330.
Which pump you have
- 3195KS, multi function systems, reservoir 3329K
- 3200KS, TJ single leg systems, reservoir 3333K
- 3201KS, AJ single and dual and AM single and dual systems, reservoir 3335K
Confirm the motor is the fault
Check the motor by disconnecting the wires from the motor studs, refitting the nuts, and running battery power directly to the studs with jumper cables. The motor should run, and run the opposite way when the connections are reversed. If it will not run in both directions with a good battery, the motor is defective. Removing the wires first is not optional: leaving them on creates a dead short to ground through the contactor and wiring at very high current.
Power supply matters. The battery should load test at a minimum of 150 amperes at 10.5 VDC for 30 seconds; a weak supply mimics a failed motor.
