Tank Reservoirs
$67.79
Hydraulic pump reservoirs

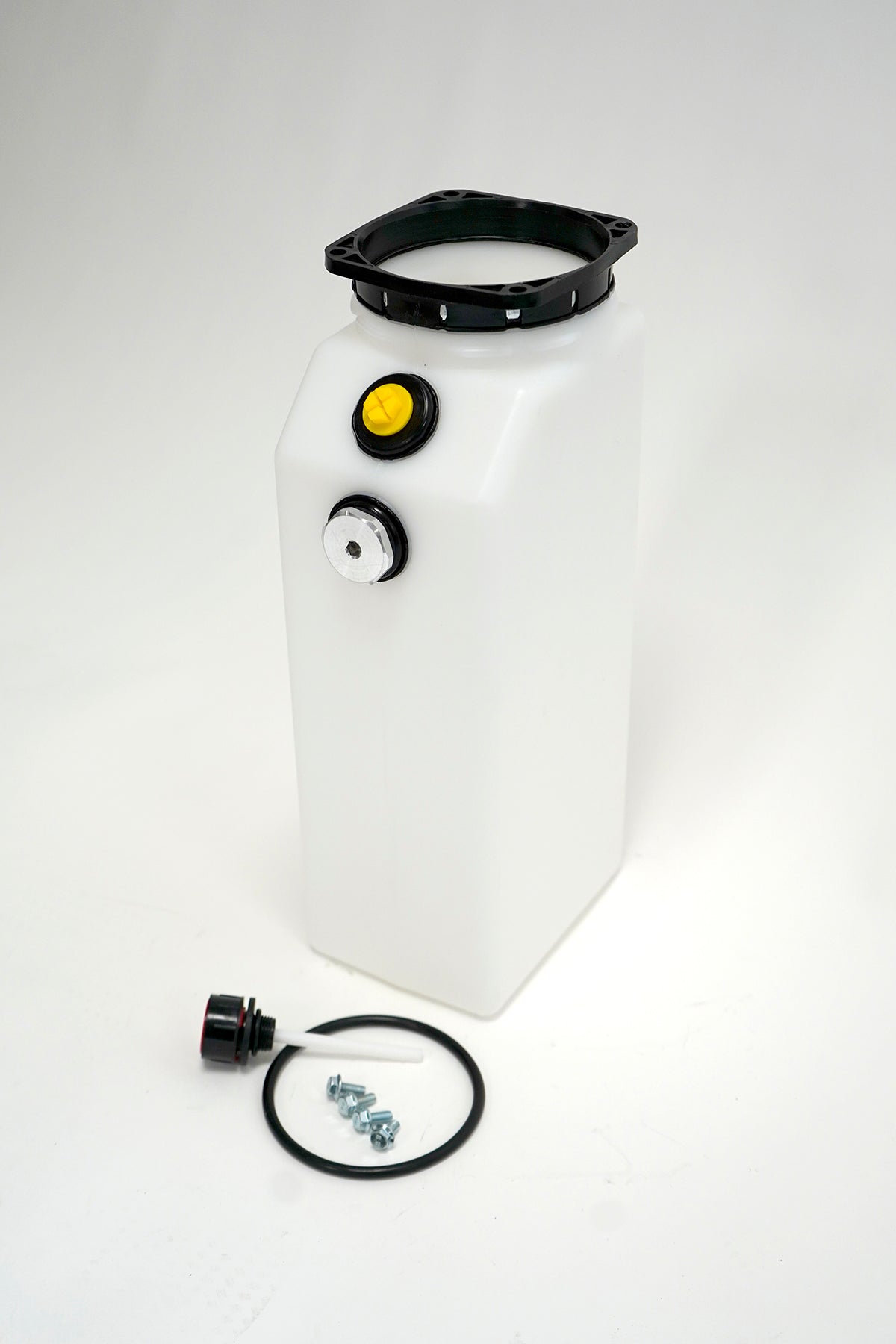

Replacement fluid reservoir for the hydraulic pump assembly, sold as a kit. The reservoir is matched to the pump, so the only reliable way to order is to read the model number off the sticker on your existing pump and pick the reservoir listed against it.
Pump model to reservoir
| 2307K | S103T*4979, S103T*5015, S103T*5076 and S103T*5290 multi function pumps |
|---|---|
| 2428K | S103T*4989, S103T*5075 and S101T*5334 multi function pumps |
| 2741K | S101T*5074, S103T*4975, S103T*4985, S103T*4996, S103T*5476, S103T*5476S and S103T*5544 AM single and dual leg pumps, and the S101T*5583 multi function pump |
| 2752K | S100T*5151, S101T*5337 and S101T*5588 pumps, TJ single leg and AJ single leg systems |
| 2753K | S103T*4971, S100T*5161, S101T*5338 and S101T*5587 pumps, AJ dual leg and AM single leg systems |
| 3329K | 3195KS pump, multi function systems |
| 3333K | 3200KS pump, TJ single leg systems |
| 3335K | 3201KS pump, AJ single and dual and AM single and dual systems |
| 3453K | 3432KS pump, AJ single systems |
| 2542K | 2542KS, 3218KS, 1551KS and 2998KS pumps, multi function systems |
SPX pumps
Reservoirs are no longer available for any SPX unit. That covers the DG1013, DG1014, DG1015, DG1017, DG1067, DG8026, DG1019, DE1019 and DE1023. SPX pumps are identified by a DG or DE number on the sticker rather than the S series or KS numbers used on MTE units.
Fitting a reservoir
Replace the sealing O-ring whenever the reservoir comes off the pump housing: part 3331 for the 3329K, and part 3334 for the 3335K and 3333K. The matching fill cap for those three is part 3330. Fill with Dexron III ATF to about one inch below the top with the jacks fully retracted, and remember the level rises as the jacks come up. The reservoir must be fitted with a vented breather cap in service, not a sealed shipping plug, or the jacks will operate erratically.
