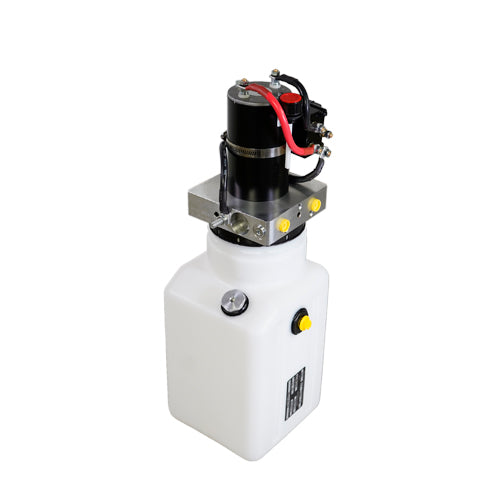

Replacement Hydraulic Pump #3195ks
$672.43
Replacement hydraulic pump assembly 3195KS
Read the model number off your existing pump before ordering
The pump model number is on the sticker on the pump itself, and it is the same as the SKU here. That number is the only reliable way to order: the same looking pump can carry a different reservoir, cover, motor and manifold depending on the system it was built for.
The 3195KS is used on multi function systems, the systems that run leveling jacks and slide-out rooms from one power unit.
Matching parts for this pump
- Reservoir: 3329K
- Supplied as an assembly including reversing contactor 2994, reservoir kit 3329K, fill cap 3330 and motor 3332
Before you replace a pump
Most pump complaints turn out to be power, not pump. The battery should load test at a minimum of 150 amperes at a minimum of 10.5 VDC for at least 30 seconds, and some lithium batteries cannot deliver the running amperage these pumps need. Check the ground to the pump stud and the positive cable to the motor solenoid for tightness and corrosion. If the motor runs but nothing moves, look at the fluid level and at trapped air before condemning the pump.
Setting up a new pump
Mount the pump so the fill and breather cap points up and can be reached for filling. Fill with Dexron III ATF to about one inch below the top of the reservoir with the jacks fully retracted, remembering the level rises as the jacks retract. Remove the flush shipping plug and fit the vented breather cap before running the system, or the jacks will operate erratically. Manual override is standard on every EQ Systems pump.
