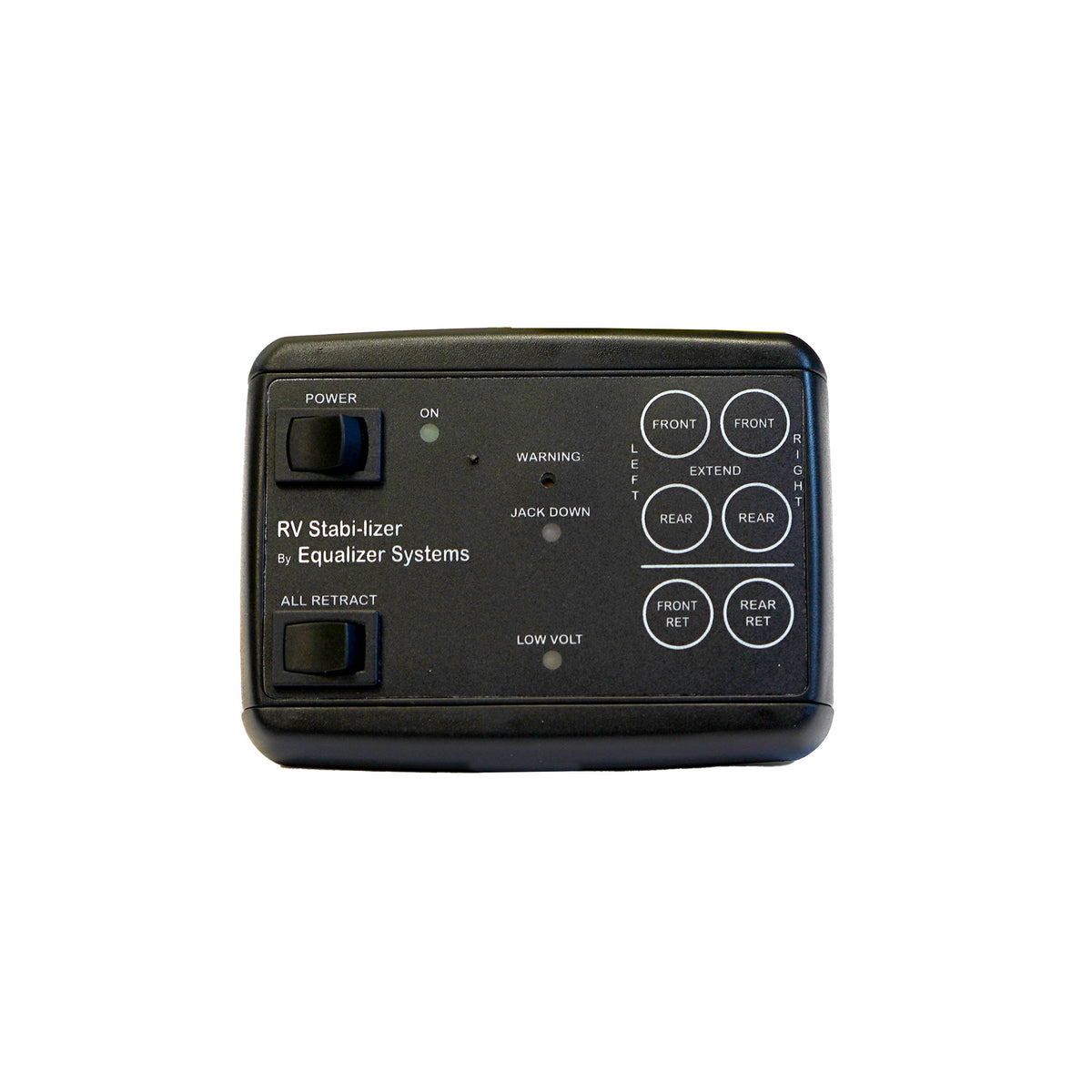

Switch Panel #3425
$137.40
Switch panel, RV Stabi-lizer, EQ Systems part 3425
Replacement switch panel for the EQ Systems RV Stabi-lizer system. The panel is the control the operator presses; the controller that drives the motors is a separate black box, part 3424.
Mounting
The switch panel is not a sealed or weatherproof unit and must be mounted where it is protected from the elements, with easy access for operation; a location near the driver is best so the status of the jacks is known before driving. Screw holes in the corners are provided for mounting; screws are not, because mounting surfaces vary. Keypads and panels are considered maintenance free, but a panel exposed to liquid will need replacing.
Diagnosing before replacing
If nothing operates, verify the power switch is on, check for a disable interlock, since extend is denied with the ignition on or the park brake released, and confirm there is power and ground at the controller. Then check for voltage at the control panel itself. If the panel has voltage and pressing it does nothing at the controller, the panel or its harness is the fault.
