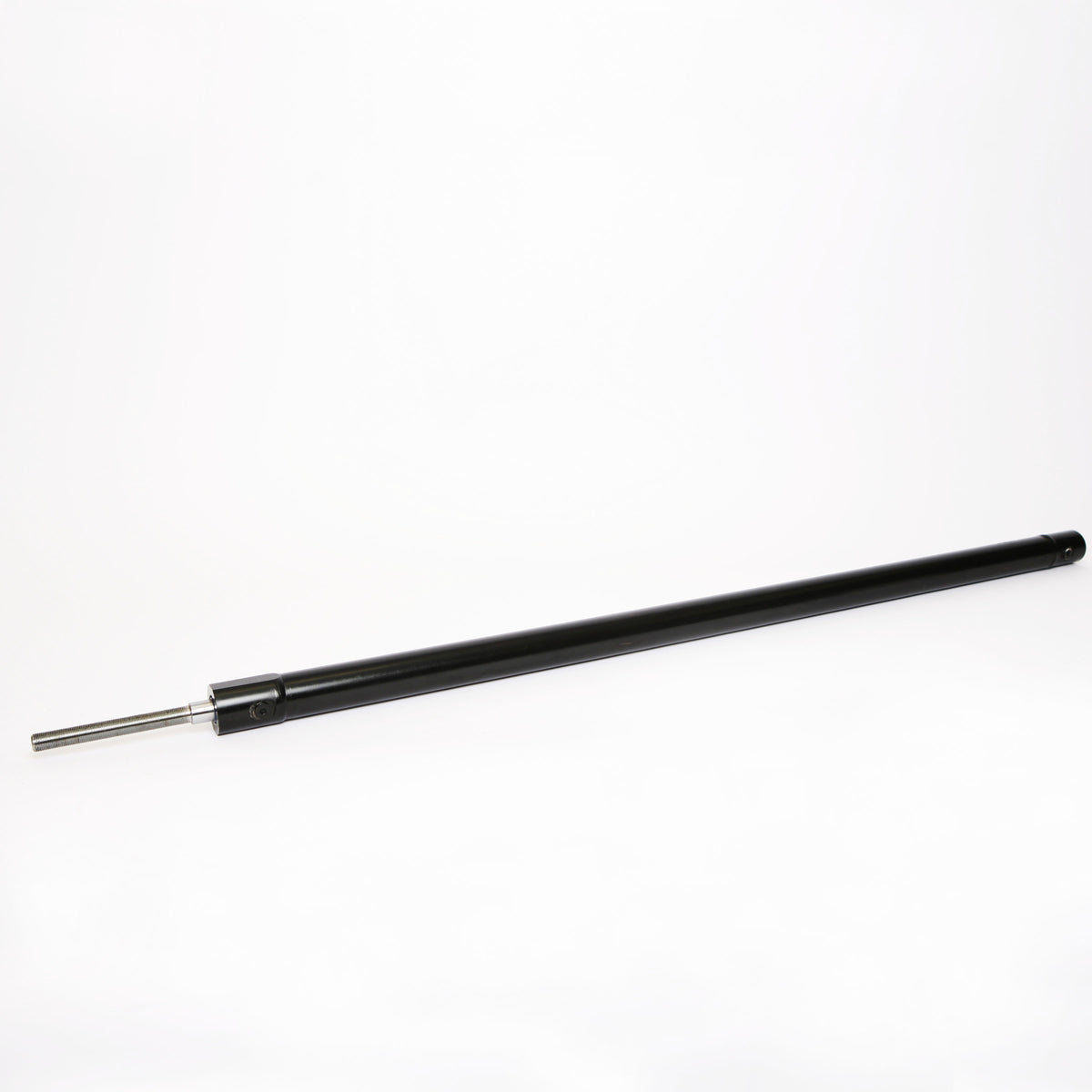

Slide-Out Cylinders
$325.34
Slide-out cylinders
Replacement hydraulic cylinder for a slide-out room. Cylinders are identified by bore, stroke and body length, and several were built only for a particular coach builder, so measure before ordering.
Cylinder identification
| Part | Description | Body length | Notes |
|---|---|---|---|
| 2162 | Slide 1 3/8 x 18 | 24" | Originally 1 1/8 inch bore |
| 1760EQ | Slide 1 3/8 x 20 | 26" | Replaces the earlier 1760. Originally 1 1/8 inch bore |
| 2453AEQ | Slide 1 3/8 x 24 | Replaces the earlier 2453 (itself a replacement for the 1 1/8 inch bore 1461) and the 1 1/2 x 24 part 2367 used on Forest River Diesel kitchen slides with the cylinder mounted on the side. Call EQ Systems at 800-846-9659 to confirm fitment before ordering | |
| 1762EQ | Slide 1 3/8 x 30 | 36" | Replaces the earlier 1762. Originally 1 1/8 inch bore |
| 2368EQ | Slide 1 3/8 x 32 | 37 7/8" with extended rod | Replaces the earlier 2368. Only used on Forest River Diesel. Early versions were 1 1/2 inch bore |
| 2314 | Slide 1 3/8 x 36 | 41 13/16" | Replaces the earlier 1763 |
| 2218EQ | Slide 1 3/8 x 38 | Not in the identification chart; call EQ Systems at 800-846-9659 to confirm fitment before ordering | |
| 1549 | Slide 1 3/8 x 42 | 48 1/16" | Originally 1 1/8 inch bore |
| 2227 | Slide 1 1/8 x 19 3/4 | 23 3/4" | Only used at Four Winds for bed slides. The cap end port is in the end of the cylinder |
Body length is measured on the cylinder body, not including the rod. The description reads bore by stroke, so a 1 3/8 x 24 is a 1 3/8 inch bore with a 24 inch stroke. Several of these cylinders replace an earlier smaller bore version, so an older coach may have a 1 1/8 inch bore cylinder where the current part is 1 3/8 inch. Where a part number exists with and without an EQ suffix, the EQ part is the one EQ Systems builds and sells now, and the plain number is obsolete.
Before you replace a slide cylinder
A slide room that extends on its own from the stowed position is usually not a failed cylinder. It indicates a loss of pressure in the common retract circuit, and the leading cause is trapped air. Bleed the system and run the hose routing test in the troubleshooting guide below before condemning a cylinder. Some slide cylinders are fitted with an anti creep valve at the rod end, part 2404.
