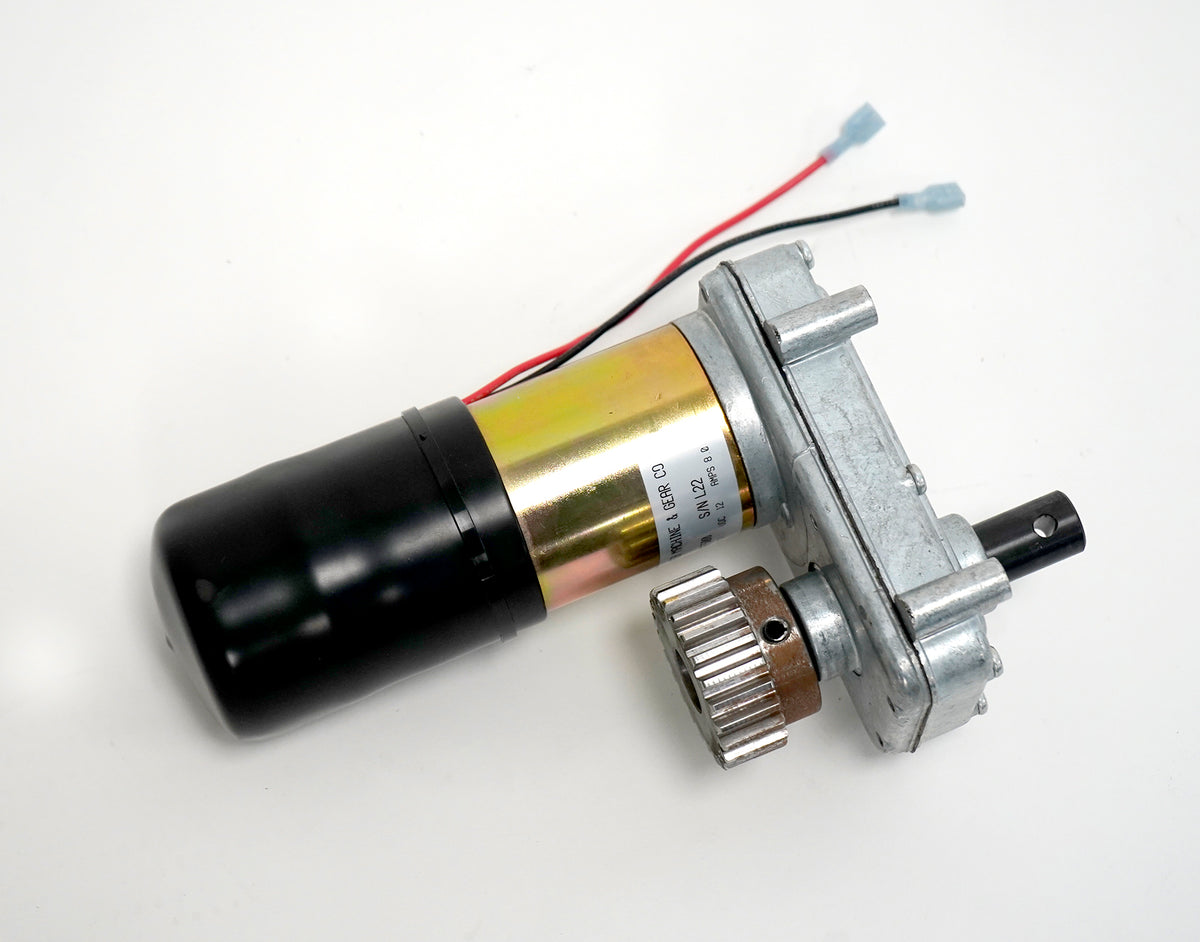

ELECTRIC SLIDE DRIVE AND GEAR #70314
$913.72
Electric slide drive and gear, EQ Systems part 70314
Motor, gear and roll-in assembly for an electric bed slide. This is the drive unit that moves the room, as opposed to the hydraulic slide cylinders used on larger rooms.
Supplied as an assembly
The motor is not available separately on the electric slide drive. The Klauber electric slide motor gearbox, model K01348D500, is replaced as a motor and gearbox assembly under EQ part 2097, and this drive and gear unit is supplied complete for the same reason: the motor and the gearbox are matched.
Related parts
The gear and pin that drive the slide from the motor are available separately as part 70338, a 12 pitch 24 tooth spur gear with a 1/4 inch by 1 3/4 inch spring pin. If the drive runs but the room does not move, check that gear and pin before replacing the whole unit.
