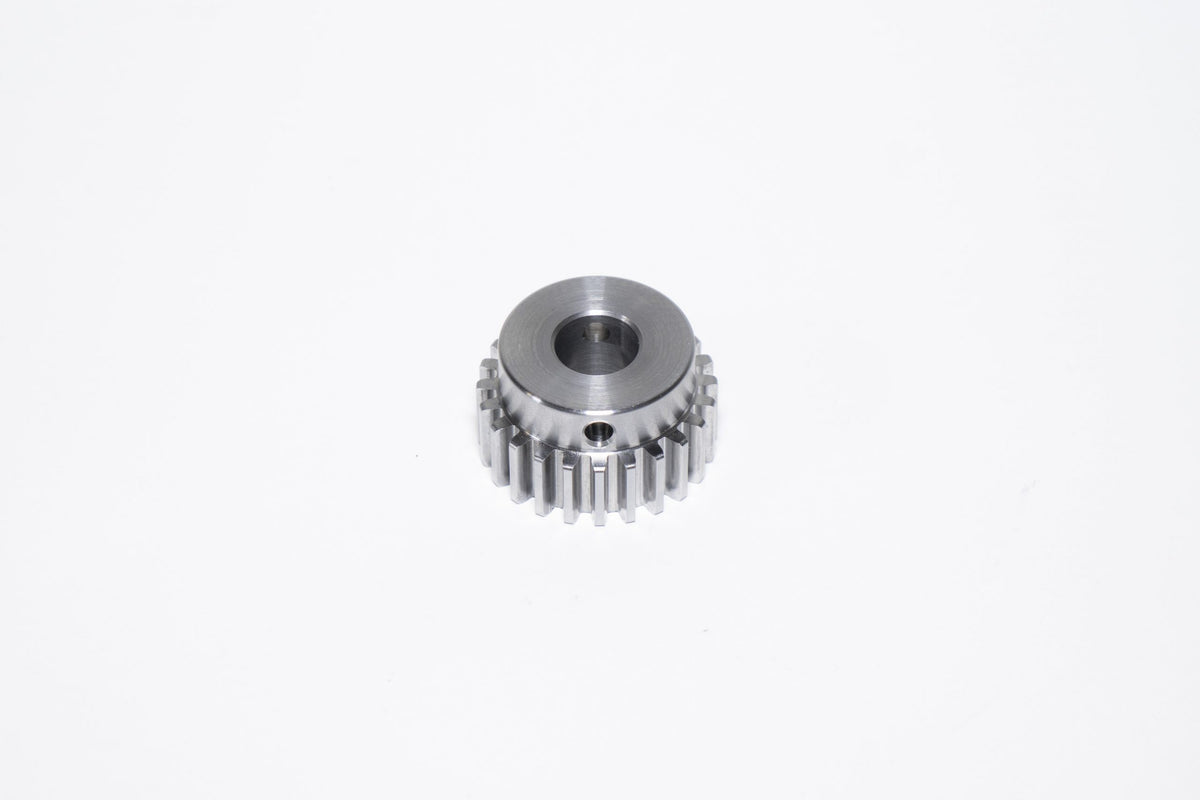

Bed Slide Gear and Pin (for Motor) #70338
$81.84
Description
Bed slide gear and pin, EQ Systems part 70338
The spur gear and spring pin that transmit drive from the electric slide motor to the bed slide mechanism.
Specifications
| Gear | 12 pitch, 24 tooth spur gear |
|---|---|
| Pin | 1/4 inch by 1 3/4 inch spring pin |
| Used on | Electric bed slide drives |
When this is the fault
A slide motor that runs, or is heard running, while the room does not move is the classic symptom of a stripped gear or a sheared drive pin. The pin is designed to be the sacrificial part in the drive train, so it is worth inspecting before the complete drive assembly, part 70314, is replaced.
