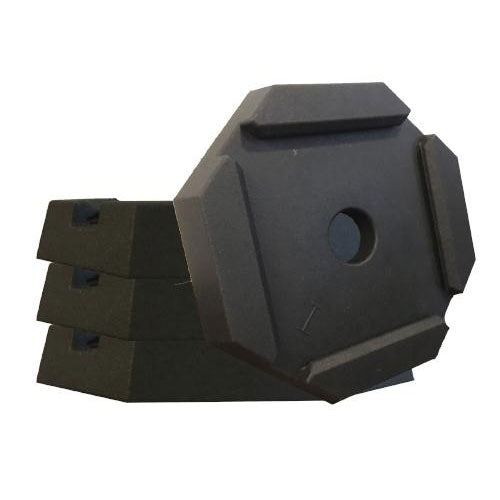

SnapPad Kit 70161
$157.45
SnapPad EQ Compact 4-pack, EQ Systems kit 70161
Kit 70161 is the SnapPad EQ Compact 4-pack: four permanent jack pads for EQ Systems 7 inch square jack feet. The same pad fits BAL 7.25 inch round landing feet. It is sized for Class B and Class C motorhomes and travel trailers. Each pad snaps onto the jack foot and stays there. No more carrying boards, no more getting out to place blocks under each jack, and nothing left behind at the campsite.
What is in the kit
- Four SnapPad EQ Compact pads
- For 7 inch square or 7.25 inch round jack feet
Specifications
- 9 inches across
- 3 lb per pad
- Adds 1 inch to the height of the jack foot
- Adds 44 percent more surface area under the foot
- Shake tested to 50 G
- Temperature tested from 120 to minus 40 degrees Fahrenheit
Check ground clearance before ordering
Some Class C motorhomes sit too low for a pad. Before ordering, check for at least 6 to 7 inches between the bottom of each fully retracted jack foot and flat, level ground, measured without a pad fitted. Retract height varies from jack to jack and from front to rear, so check every one. With pads fitted, take curbs, speed bumps, potholes and driveway entrances slowly so the suspension does not drop a jack onto the ground.
Confirm your jack foot
SnapPad is sized to the foot, not to the coach. Measure your jack foot before ordering: the length and width on a square foot, the diameter on a round one. The Jack Replacement Chart below lists the foot fitted to every EQ Systems jack.
Why fit them
- Permanent jack pad and leveler, installed once
- Adds stability and spreads the load on soft ground
- Rubber dampens vibration and the anti-slip face grips on all surfaces
- A water drainage channel clears standing water
- Made in the USA from recycled tires
- Insulates against electrical surges from indirect lightning strikes
- Protects your driveway from rust marks
- Two year warranty
Warning: installing SnapPad products on non-compatible leveling systems voids the warranty and can lead to product failure, property damage or injury. EQ Systems is not responsible for issues arising from use on non-compatible systems. If there is any doubt about which kit fits your jacks, call EQ Systems at 800-846-9659 with your jack foot measurement before ordering.
Installation
One time installation. The pad snaps over the jack foot and is held there permanently, so it travels with the coach and is ready the moment the jacks come down. Nothing to store, nothing to forget.
Other SnapPad kits
If your jack feet are a different size or shape, one of these may be the right kit:
- Kit 70147, SnapPad EQ Octagon 4-pack: four pads for 10 inch octagon feet
- Kit 70148, SnapPad EQ Grand Octagon 4-pack: two pads for 10 inch octagon feet and two for 12 inch round feet
- Kit 70149, SnapPad EQ Grand 4-pack: four pads for 12 inch round feet
- Kit 70170, SnapPad EQ Grand Lux 6-pack: four octagon pads and two round pads for six point fifth wheel systems
