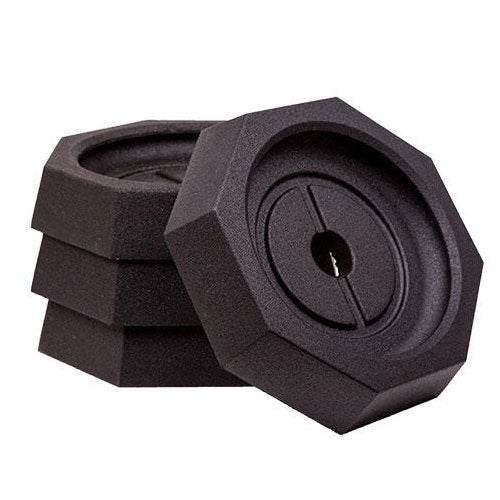

SnapPad Kit 70147
$241.45
SnapPad EQ Octagon 4-pack, EQ Systems kit 70147
Kit 70147 is the SnapPad EQ Octagon 4-pack: four permanent jack pads for 10 inch octagon jack feet on EQ Systems leveling jacks. Each pad snaps onto the jack foot and stays there. No more carrying boards, no more getting out to place blocks under each jack, and nothing left behind at the campsite.
Not recommended for Class A or Super C motorhomes. EQ Systems does not recommend fitting SnapPads to a Class A or Super C motorhome, because they can sometimes lead to damage.
What is in the kit
- Four SnapPad EQ Octagon pads
- For 10 inch octagon jack feet
Specifications
- 13.25 inches across
- 8.9 lb per pad
- Adds about 1 inch to the height of the jack foot
- Adds 79 percent more surface area under the foot
- Shake tested to 50 G
- Temperature tested from 120 to minus 40 degrees Fahrenheit
Octagon foot, round pocket
The pocket in each octagon pad is round by design. There is no need to line the sides of the foot up with the sides of the pad. Center the jack foot over the pocket and it seats securely.
Check clearance before ordering
On some coaches the jack assemblies sit close to the tires, suspension blocks or brake cylinders, and a fitted pad can interfere with them. Before ordering, check every jack foot, front and rear, for 2 inches of space to the side and 3/4 inch above the top edge of the foot. Where that clearance is missing, a suspension block can knock the pad and the jack foot off in transit.
Confirm your jack foot
SnapPad is sized to the foot, not to the coach. Measure your jack foot before ordering: an octagon foot is measured across the flats, not corner to corner. The Jack Replacement Chart below lists the foot fitted to every EQ Systems jack.
Why fit them
- Permanent jack pad and leveler, installed once
- Adds stability and spreads the load on soft ground
- Rubber dampens vibration and the anti-slip face grips on all surfaces
- A water drainage channel clears standing water
- Made in the USA from recycled tires
- Insulates against electrical surges from indirect lightning strikes
- Protects your driveway from rust marks
- Two year warranty
Warning: installing SnapPad products on non-compatible leveling systems voids the warranty and can lead to product failure, property damage or injury. EQ Systems is not responsible for issues arising from use on non-compatible systems. If there is any doubt about which kit fits your jacks, call EQ Systems at 800-846-9659 with your jack foot measurement before ordering.
Installation
One time installation. The pad snaps over the jack foot and is held there permanently, so it travels with the coach and is ready the moment the jacks come down. Nothing to store, nothing to forget.
Other SnapPad kits
If your jack feet are a different size or shape, one of these may be the right kit:
- Kit 70148, SnapPad EQ Grand Octagon 4-pack: two pads for 10 inch octagon feet and two for 12 inch round feet
- Kit 70149, SnapPad EQ Grand 4-pack: four pads for 12 inch round feet
- Kit 70161, SnapPad EQ Compact 4-pack: four pads for 7 inch square feet
- Kit 70170, SnapPad EQ Grand Lux 6-pack: four octagon pads and two round pads for six point fifth wheel systems
