6 Point Fifth Wheel EQ Smart-Level Heavy Duty Hydraulic Leveling System
$5,162.00
Six point heavy duty EQ Smart-Level hydraulic leveling system for fifth wheels
Complete automatic six point heavy duty hydraulic leveling system for fifth wheel trailers. It comes with mounting bolts and brackets.
The fifth wheel system works on just about every model of fifth wheel trailer. It replaces the electric front jacks and the rear manual stabilizer jacks, and the front two jacks operate together or independently of the leveling system, so the trailer can be lifted off the truck for easy hooking and unhooking. Then one push of a button automatically levels the trailer in less than two minutes.

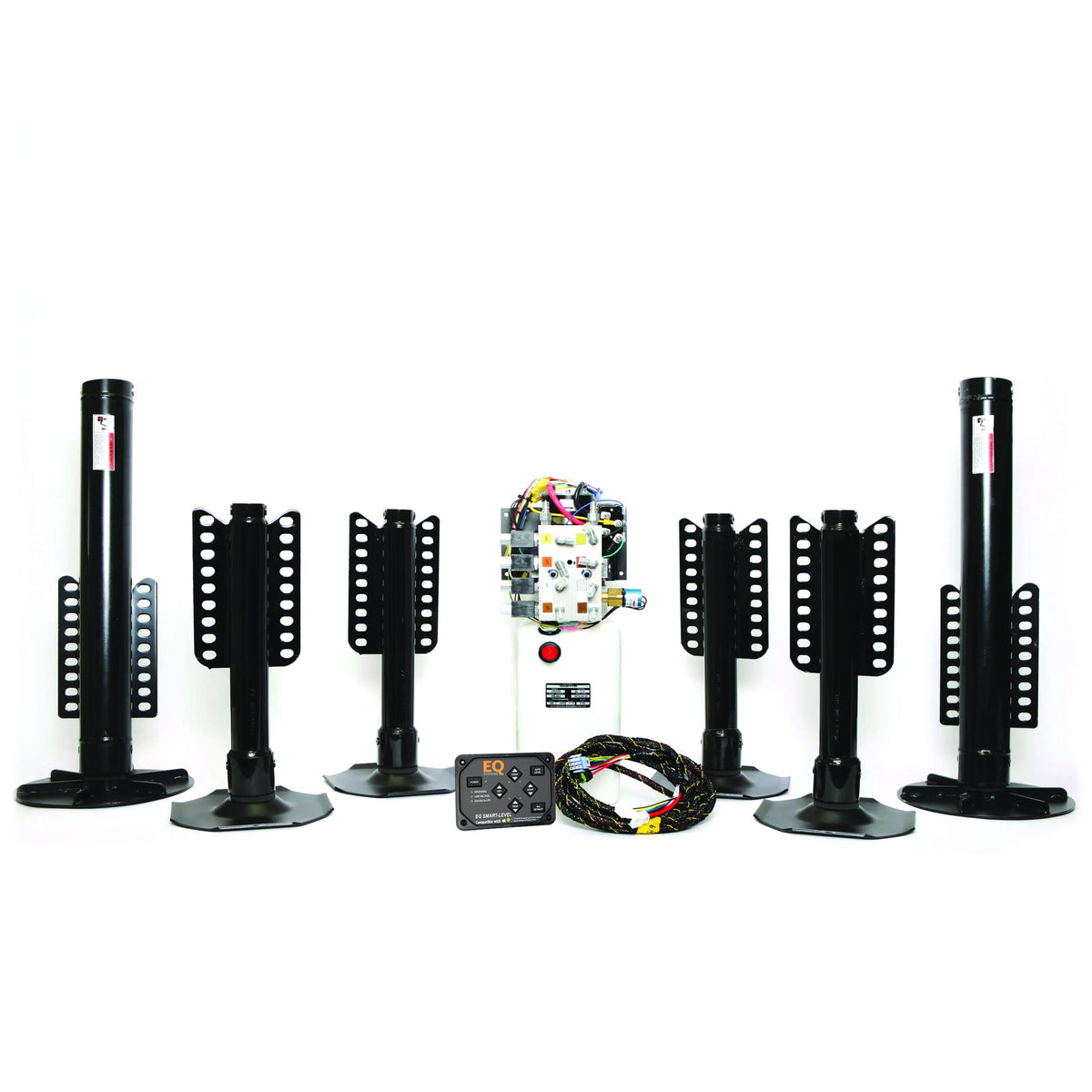

What is in the kit
- EQ Smart-Level controls
- Two switch manual control for the front jacks
- Two 30 inch front jacks with 24 inch stroke and large foot pads
- Four 21 inch rear jacks with 18 inch stroke and large foot pads
- Four function commercial pump with manual override
- Mounting bolts and brackets
- Main pump and control harness
- Four 10 ft hoses, eight 12 ft hoses, two 28 ft hoses and two 32 ft hoses
EQ Smart-Level system advantages
- One pump operates all legs
- Bluetooth capability, so the coach can be levelled from a phone. Compatible with iPhone and Android
- One touch push button operation
- Field adjustable null, so level is set to the position the operator wants
- Level accuracy to within 1/2 degree of the set null point
- Audible and visual prompts when levelling is in progress and complete
- Auto All Retract stows the rear jacks; the front jacks retract with their own control after coupling to the truck
This is the same leveling system used by leading RV manufacturers, supplied as an installation friendly kit. Our sequential leveling process provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while leveling it as low to the ground as possible. It is quick, easy, and on the level.
The EQ Smart-Level control allows the trailer to be adjusted manually whenever needed, which gives you full control over the system. All harnesses are protected by a PVC coated nylon braid with waterproof connectors, and the heavy duty commercial grade pump has manual override capability in case of power failure. Installation can be done by most RV dealers or service centers, and EQ Systems also offers factory installation at its facility in Cassopolis, Michigan.
Power the system needs
EQ Systems recommends a minimum group 24 RV or marine deep cycle battery rated at least 100 minutes reserve capacity and 500 cold cranking amps; the higher those numbers the better. Flooded lead acid, gel and AGM types are all suitable, and some lithium batteries cannot deliver the running amperage these pumps need, so check with the battery manufacturer. The panel shows a low voltage warning below 10.5 volts.
After installation
Set the Null so the system knows the level position you want. The system runs on Dexron or multipurpose automatic transmission fluid, filled to 1 to 1 1/2 inches below the top of the reservoir with the jacks retracted; plan on 10 to 16 quarts for a full system, and remember the level rises as the jacks retract.
