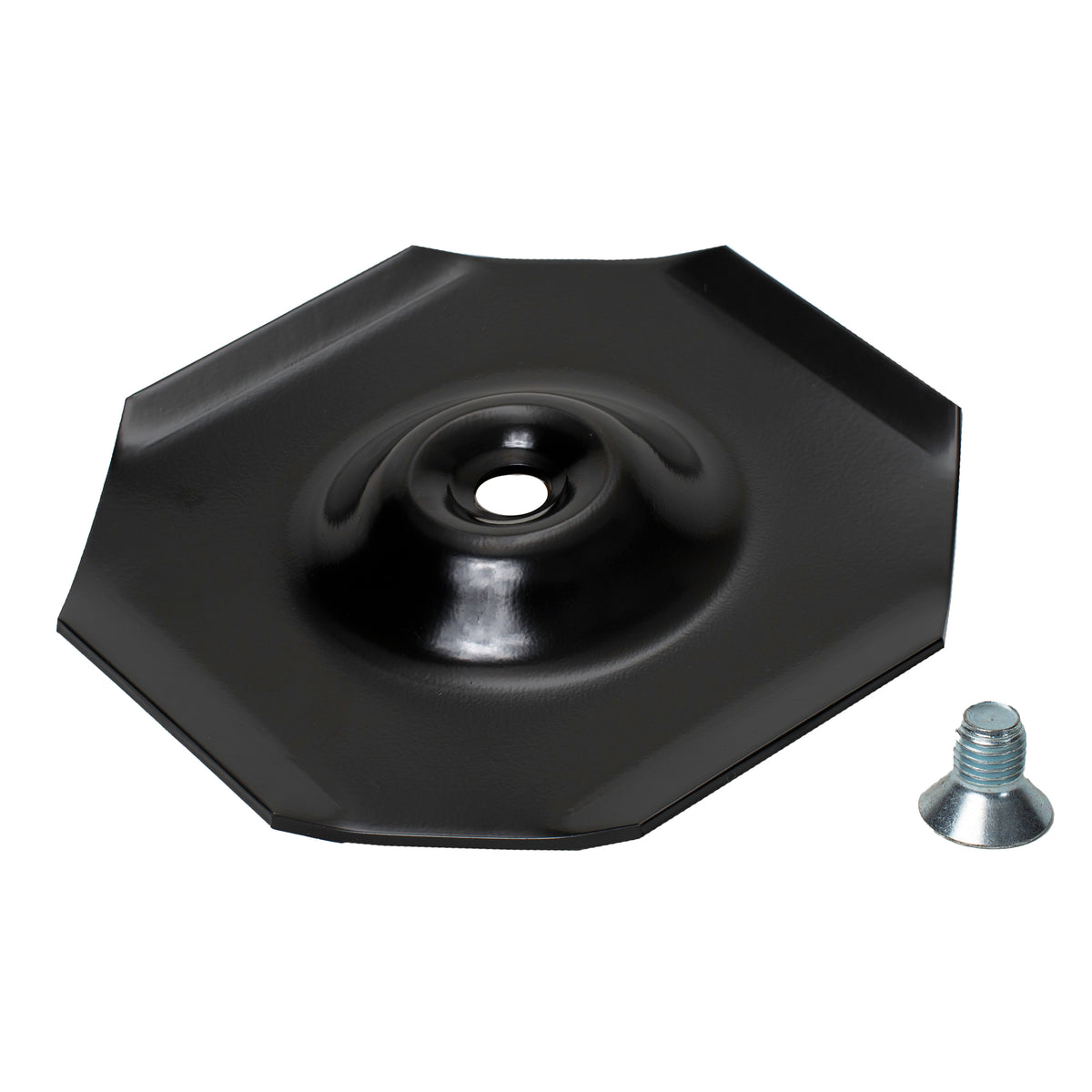

10 X 10 Foot Pad with Screw #7818
$61.27
10 by 10 inch foot pad, EQ Systems part 7818
The foot pad is the plate at the bottom of a hydraulic jack leg that carries the load into the ground. This is the 10 by 10 inch replacement pad, supplied with its screw. It is the version for jack legs without a leg switch.
Jacks this foot pad fits
- SL 15 jack, part 7636, 2 3/8 inch body plate mount, body length 19 3/8", plate position 0"
Those jacks are rated at 7.5k lifting capacity each.
Identifying the right pad
Measure your existing pad before ordering. An octagon pad is measured across the flats and a round pad across the diameter. Then confirm the jack itself: the body length is the fixed outer body of the jack, measured with the jack retracted, and the plate or bracket position is measured from the closed end of the body, positive toward the foot and negative past the closed end. Every EQ Systems jack, its body length, and the foot that belongs to it are listed in the chart below.
A worn, bent or missing foot pad is worth replacing promptly on a system that uses leg switches. The switch is operated by the foot leaving and returning to the stowed position, so a missing foot will not operate the switch at all, a bent or distorted foot may not activate it properly, and a foot bent upward can damage or destroy the switch.
