20" Stroke 34K lbs. Dual Leg Hydraulic Landing Gear
$4,298.61
Hydraulic landing gear, dual round leg, 20" stroke, 34,000 lbs
Hydraulic Landing Gear by EQ Systems lifts trucks to dock height at the push of a button. The twin legs operate independently to lift, level and stabilize single and tandem axle trucks, vans and lowboys, which is what separates it from a manual landing gear set: one side can be raised without the other.
Specifications
| Configuration | Dual leg, round leg |
|---|---|
| Stroke | 20" |
| Capacity | 34,000 lbs |
| Operation | Hydraulic, push button, legs operate independently |
| Applications | Single and tandem axle trucks, vans and lowboys |
System

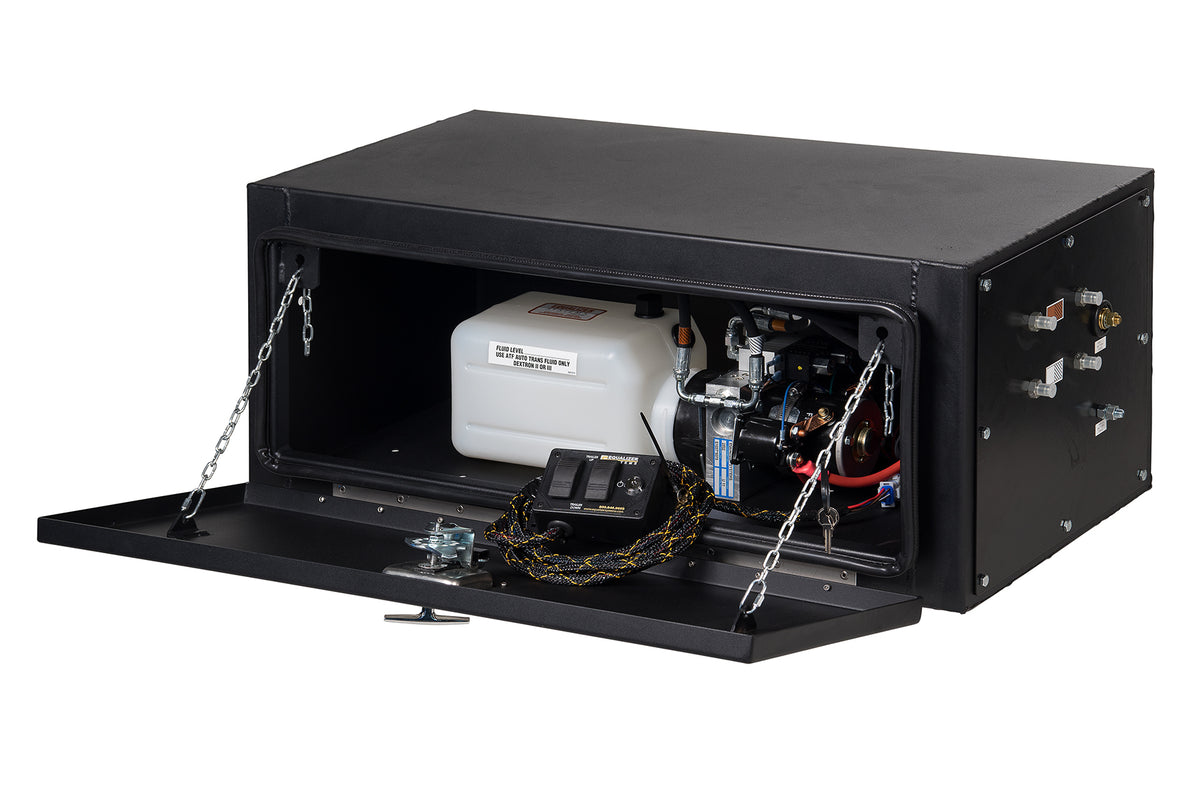

One EQ Systems pump assembly runs both legs and can be mounted in a powder coated steel box or tray, in 12 or 24 volt. Manual override options are available so the gear can still be operated if power is lost. Switchgear is built in house, performance verification tested, with a braided nylon exterior, and keyed switchgear is available to prevent unauthorized use.
Safety options worth specifying
- Pilot operated check valve, which hydraulically locks a leg in place
- Mechanical lock out bars, which physically lock a leg in the extended position
- Keyed switchgear
Specifying the right unit
EQ Systems builds landing gear and lifting systems to specification. Capacity, stroke and leg style all vary by application, and custom brackets and foot pads change the mounting. If your trailer needs a combination that is not listed, call EQ Systems at 800-846-9659 and it can be built.
Maintenance
Hydraulic systems run on Dexron III ATF, with the reservoir about one inch below the top with the legs retracted. Required inspection is every 12 months in normal use and more often in extreme use: keep all connectors tight and free from corrosion, particularly the ground to the pump stud and the positive cable to the motor solenoid.
