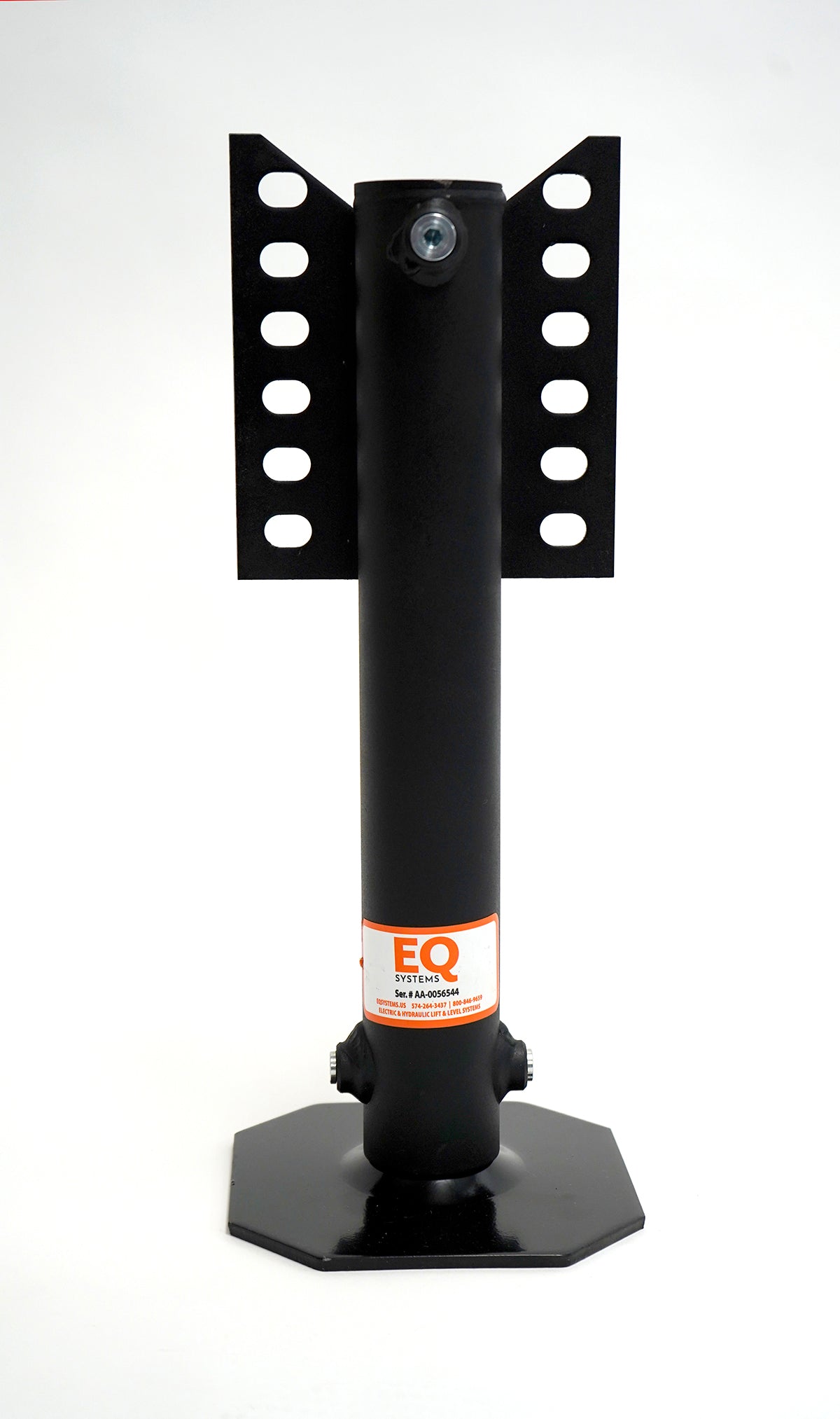

SL 13 HP Jack without leg switch
$433.47
SL 13 straight leg hydraulic jack without leg switch, EQ Systems part 7842
Straight leg hydraulic jack for EQ Systems lifting and leveling systems. Straight leg jacks are powder coated, light for their capacity, and suit applications with limited ground clearance. This jack can be fitted to an existing EQ Systems hydraulic system or bought as part of a complete lifting and leveling solution.
This version is supplied without a leg switch, for systems that report jack position another way or not at all. If your control panel shows a jack down light for each leg, you need the version with the switch.
Specifications
| Model | SL 13 |
|---|---|
| Lifting capacity, each jack | 7.5k lbs |
| Stroke | 13" |
| Cylinder bore | 2" |
| Retracted length | 16.98" |
| Extended length | 30" |
| Weight | 20 lbs |
| Mount style | 2 3/8 inch body plate mount |
| Body length | 17 3/8" |
| Plate position | 0" |
Service parts for this jack
- Replacement foot pad: part 70385
- Replacement nut and bolt: part 1383
Making sure this is your jack
Body length is the fixed outer body measured with the jack retracted. Plate position is measured from the closed end of the body, positive toward the foot and negative past the closed end. Measure both before ordering, because EQ Systems has built the same model in more than one configuration.
Part 7842 appears on more than one row of the identification chart: 17 3/8" body at a 0" plate position (Obsolete, contact EQ Systems), and 16 3/8" body at a -7/8" plate position. Measure yours, and call EQ Systems at 800-846-9659 if it matches the obsolete build.
Other SL 13 builds: part 70381, 16 3/8" body at 7 1/4"; part 7842A, 16 3/8" body at 2"; part 7842REV, 16 3/8" body at 2".
Obsolete, contact EQ Systems.
